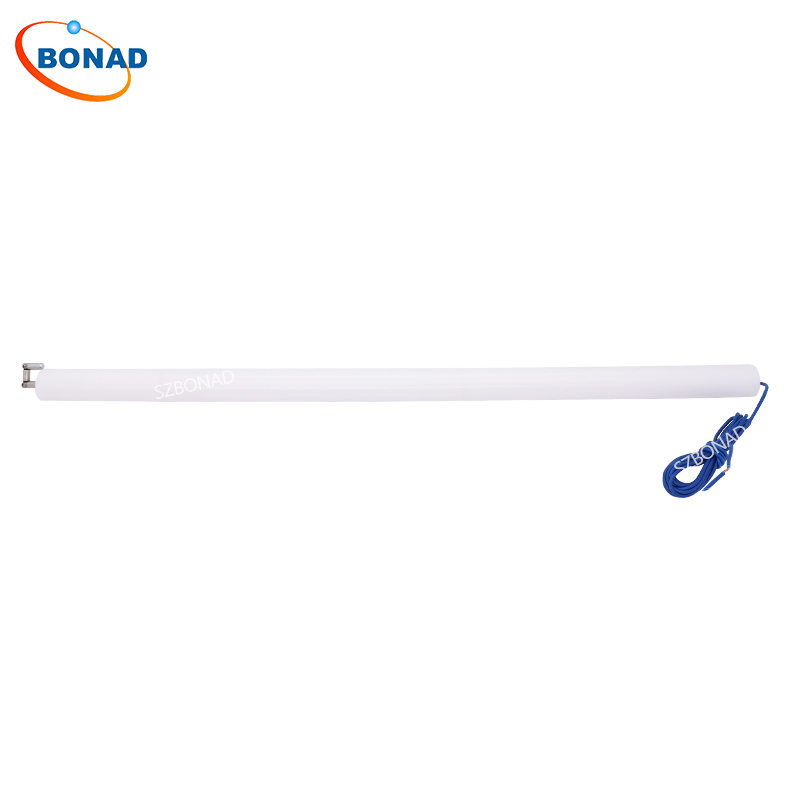

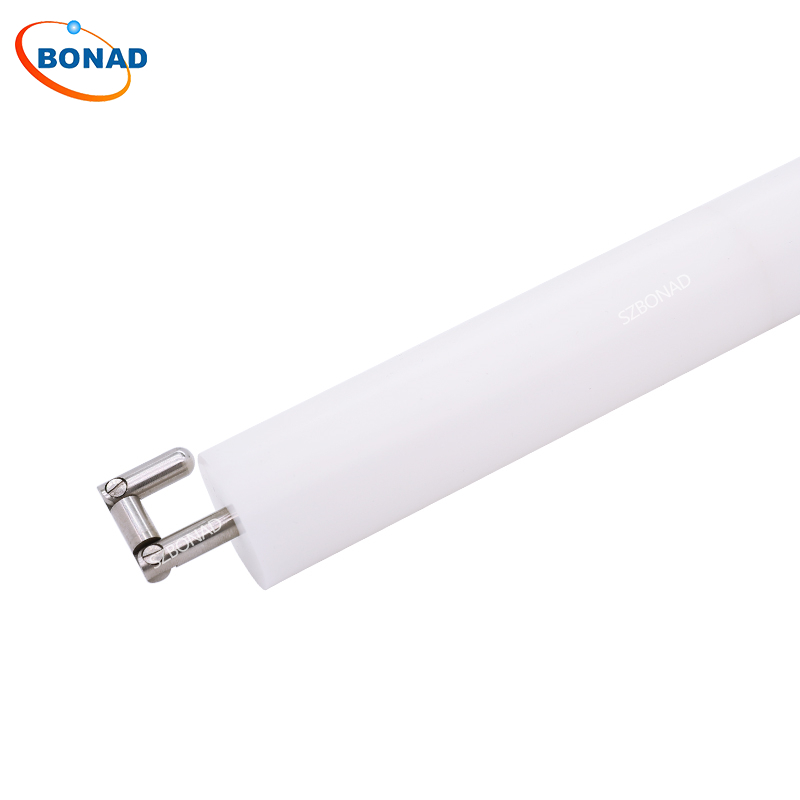

IEC61032 Children Test Finger probe 19 BND-19

Product Description：

Specification:

Children Test Finger / Children Test Finger19

1, According to : GB4706.1、IEC61032-1997 and UL

2, Children Test Finger 19 Probe is the necessary appliance to prevent electic shock for household and similar electrical problem

Technical Parameters:

1, Knurled Finger Diameter: 5.6mm

2, Knurled Finger Length :44mm

3, Head Radius:2.8mm

4,The First Handle Diameter: 101.6mm

5, The First Handle Length:101.6mm

6, The Second Handle Diameter:25.4mm

7, The Second Handle Length:464.3mm

8, Reference Standards: GB4706.1 、IEC61032:1997 Figure 13,

Application:

1, The metal parts of the Test Probe can not touch the live parts or not close to hazardous parts, plastic dam-board can not be entered .The reference standards are different ,please according to related standards on the detailed test . It is only based on IEC 61032 & GB16842

Note: Children Test Finger 19 is made of precision stainless steel, putting down and taking up slightly when using, and pay attention to maintenance
