IPX5 IPX6 Spray Hose Nozzle Tester BND-IPX56P

Product Description：

IPX5 IPX6 Spray Hose Nozzle Tester, water Nozzle Tester

Type：BND-IPX56P

Specifications

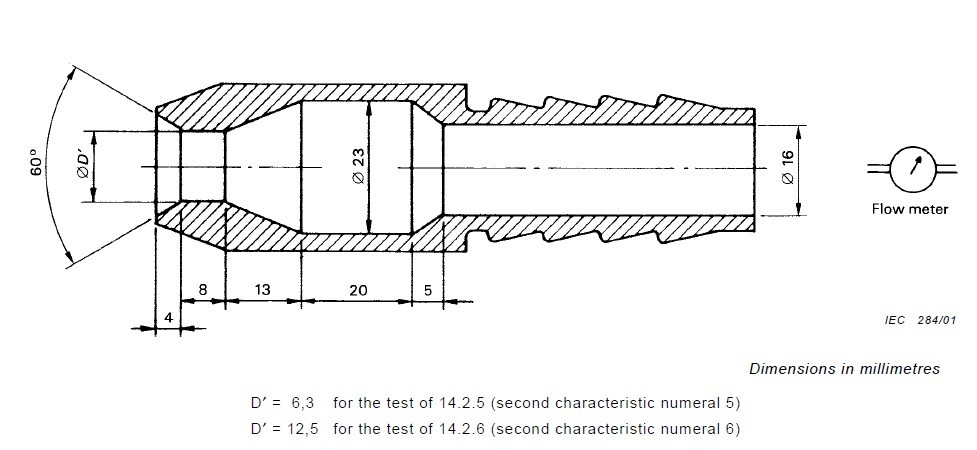

1,internal diameter of the nozzle:6.3mm

2,delivery rate:12.5/min+/- 5%

3,water pressure:to be adjusted to achieve the specified delivery rate

4,Core of the substantial stream:circle of approximately 40mm diameter at 2.5 distance from nozzle

5,Test duration per square meter of enclosure surface area likely to be sprayed :1mm

6,Minimum test duration :3min

7,Distance from nozzle to enclosure surface:between2.5 and 3m

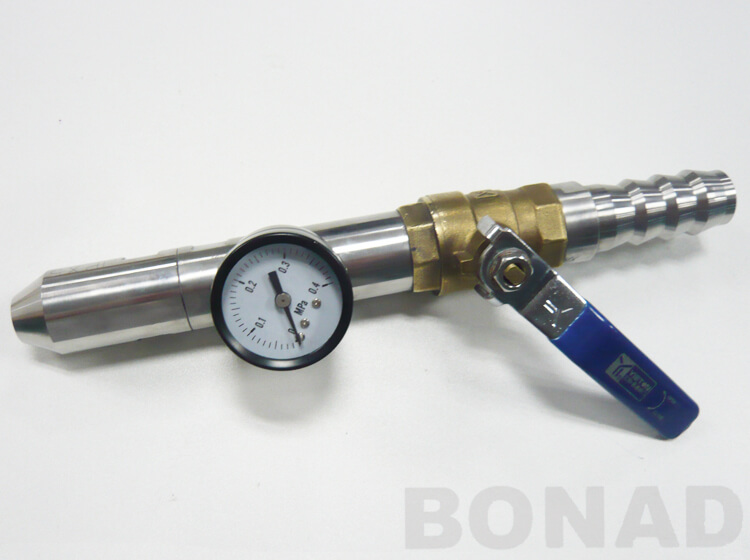

Test Set consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve.The interchangeable nozzles assemble easily to the jet handle.

The nozzles are made from stainless steel.

Include: Pressure gauge.

Stainless steel nozzle.

Valve for water flow regulation and shut off
