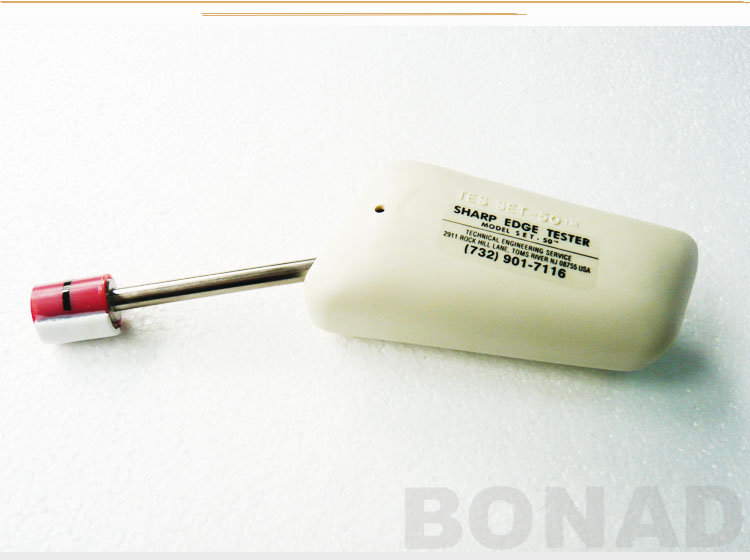

UL1439 Sharp Edge Tester for scratch abrasion test

Product Description：

Name：UL1439 Sharp Edge Tester for scratch abrasion test

Type：BND-50

Product Explanation:

Sharp Edge Tester meets the standard requirement of UL1439, and it is used for testing whether the sharp edge of the electrical products, such as computers, daily household appliances and electronic equipments, is hazardous to user in touchable places. It is used for safety testing.

Standard NO. of American UL-1439

Volume: 184×35×52 mm

Weight: 132 g

Manufacturer: TES

Accessory: TC-3 TAPE KIT(21 pcs)

Application Method:

1.Put the pressure testing cap on the tester

2.Put the pressure testing cap closes to the tested edge and move the cap along the tested edge for 2 inches with a 0.68kg force, then return to the starting point. The whole distance will be 4 inches

3.After the movement, check the pressure testing cap. If the outermost 2 layers(the simulative skin) have been scratched off, the edge is considered as the sharp edge.

Specification:

This tester is designed for the standard of UL. The UL company sets up an objective standard to decide whether an edge meets the safety requirement. Most of the UL standards to the consumption products,such as edges, protruded parts, corners, cutouts, coiled rims and handles ,need to smooth out to avoid getting hurt.
